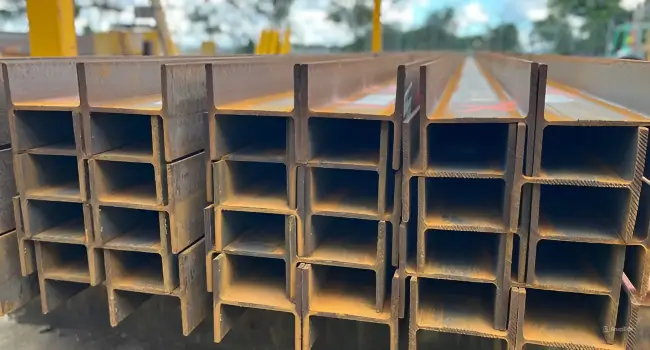

Universal Column

Universal-Columns1

Universal columns can be used in the following:
– Construction: Buildings, including, but not limited to:

  • Cold Storage
  • Educational
  • Entertainment
  • Factory
  • Office
  • Residential
  • Retail
  • Sporting Facility

– Construction: Infrastructure
* Bridge
– Transport & Storage
* Cold Storage

 Universal Column (UC) Brisbane
Code Kg/mtr Depth (mm) Width (mm) Flange Thickness Web Thickness
UC10014 14.8 97 99 7 5
UC15023 23.4 152 152 6.8 6.1
UC15030 30 158 153 9.4 6.6
UC15037 37.2 162 154 11.5 8.1
UC20046 46.2 203 203 11 7.3
UC20052 52.2 206 204 12.5 8
UC20059 59.5 210 205 14.2 9.3
UC25072 72.9 254 254 14.2 8.6
UC25089 89.5 260 256 17.3 10.5
UC31096 96.8 308 305 15.4 9.9
UC310118 118 315 307 18.7 11.9
UC310137 137 321 309 21.7 13.8
UC310158 158 327 311 25 15.7
