Parallel Flange Channel

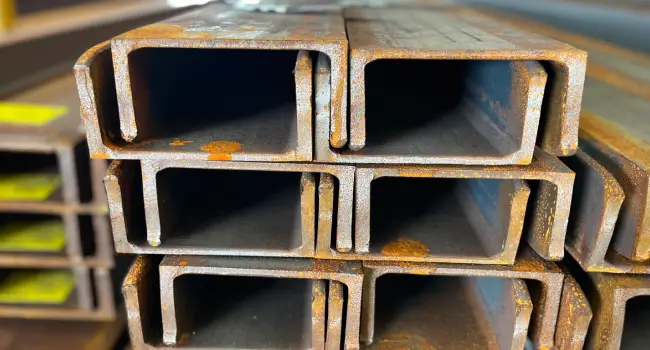

parallel-flange-channelParallel Flange Channel Brisbane in stock now – is normally used for building and construction projects. Most evident in the house industry. It is strong, versatile and is suitable for welding. Harding Steel stock parallel flange channel Steel in 1.5m, 3m and 6m lengths but these can be cut down to size to suit your specifications.Note that Mild steel is sometimes known as carbon steel or plain steel. It is rigid and strong. Carbon steels generally do not rust, further, they can be primed and painted. They are less expensive so they are typically first choice for most fabrications.

 Parallel Flange Channel (PFC) – Brisbane
Depth (mm) Width (mm) Flange Thickness Web Thickness Kg/mtr
75 40 6.1 3.8 5.92
100 50 6.7 4.2 8.33
125 65 7.5 4.7 11.9
150 75 9.5 6.0 17.7
180 75 11 6.0 20.9
200 75 12 6.0 22.9
230 75 12 6.5 25.1
250 90 15 8.0 35.5
300 90 16 8.0 40.1
380 100 17.5 10.0 55.2

150 pfc
180 pfc
200 pfc
250pfc
300 pfc
