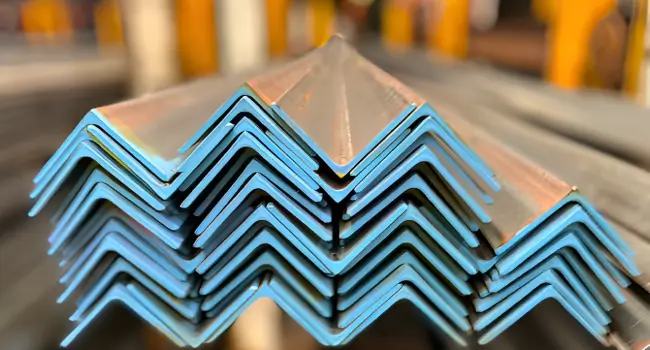

Equal angle mild steel, Brisbane northside now in stock at Harding Steel.
Equal Angles or Unequal Angles, ranging in a variety of sizes. Angle sections are stocked in either 1.5m lengths, 3m lengths or 6m lengths – but all can be cut exactly to your requirements
Mild Steel angle is a length of steel or iron that is bent at a right angle, typically used for making frames, racks and for construction purposes.
Mild steel can be also known as carbon steel or plain steel. Mild steel is ridgid and quite strong.
Carbon steels do rust under most circumstances, and they can be primed and painted.
They are less expensive so they are for most people a first choice for most fabrications.
We are able to cut Mild Steel to your specifications.
| Size (mm x mm) | Thickness (mm) | Length (mtr) | Weight (kg/m) |
|---|---|---|---|
| 20 x 20 | 3 | 6.0 | 0.87 |
| 25 x 25 | 3 | 7.5 | 1.12 |
| 5 | 7.5 | 1.65 | |
| 6 | 7.5 | 2.08 | |
| 30 x 30 | 3 | 7.5 | 1.35 |
| 5 | 7.5 | 2.01 | |
| 6 | 7.5 | 2.56 | |
| 40 x 40 | 3 | 7.5 | 1.83 |
| 5 | 7.5 | 2.73 | |
| 6 | 7.5 | 3.5 | |
| 50 x 50 | 3 | 7.5 | 2.31 |
| 5 | 7.5 | 3.48 | |
| 6 | 7.5 | 4.46 | |
| 8 | 9.0 | 5.68 | |
| 65 x 65 | 5 | 9.0 | 4.56 |
| 6 | 9.0 | 5.87 | |
| 8 | 9.0 | 7.51 | |
| 10 | 9.0 | 9.02 | |
| 75 x 75 | 5 | 9.0 | 5.27 |
| 6 | 9.0 | 6.81 | |
| 8 | 9.0 | 8.73 | |
| 10 | 9.0 | 10.5 | |
| 90 x 90 | 6 | 9.0 | 8.22 |
| 8 | 9.0 | 10.6 | |
| 10 | 9.0 | 12.7 | |
| 100 x 100 | 6 | 9.0 | 9.16 |
| 8 | 9.0 | 11.8 | |
| 10 | 9.0 | 14.2 | |
| 12 | 9.0 | 17.7 | |
| 125 x 125 | 8 | 9.0 | 14.9 |
| 10 | 9.0 | 18 | |
| 12 | 9.0 | 22.5 | |
| 16 | 9.0 | 29.1 | |
| 150 x 150 | 10 | 9.0 | 21.9 |
| 12 | 9.0 | 27.3 | |
| 16 | 9.0 | 35.4 | |
| 19 | 9.0 | 42.1 | |
| 200 x 200 | 13 | 9.0 | 40 |
| 16 | 9.0 | 48.7 | |
| 20 | 9.0 | 60.1 | |
