Purlins

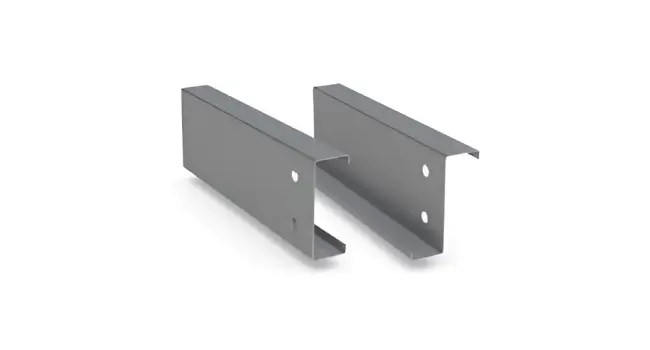

Purlin (C and Z) steel beams in Brisbane are used to attach sheeted roofs and vertical wall material positioned between the sheeting and the primary building structure. When used to support a vertical wall cladding they can sometimes be referred to as rails.

The purlins required for a particular application will vary with the thickness of the sheet or panel, the pitch of the roof and prevalent weather and loading conditions.

Got a better quoted price elsewhere? Bring it to us for a great deal on c purlins and z purlins!

Our C & Z purlin range are made to order direct from the mill, average wait times are about 5-7 business days from order placement, however we do keep a small range of purlins as listed below under – READY TO GO STOCKED SIZES

Call : 07-3865-5778
Email to confirm : sales@hardingsteel.com.au

C Purlins Brisbane Northside

Minimum order $200

Code	Thickness	Size (mm)	Weight (kg/mtr)	Cost (p/mtr) INC GST
C10012	1.2	102 x 51	2.10	$8.25
C10015	1.5	102 x 51	2.62	$9.79
C10019	1.9	102 x 51	3.29	$12.10
C15012	1.2	152 x 64	2.89	$11.33
C15015	1.5	152 x 64	3.59	$13.42
C15019	1.9	152 x 64	4.52	$16.50
C15024	2.4	152 x 64	5.70	$20.57
C20015	1.5	203 x 76	4.49	$16.72
C20019	1.9	203 x 76	5.74	$20.90
C20024	2.4	203 x 76	7.24	$26.07
C25019	1.9	254 x 76	6.50	$23.76
C25024	2.4	254 x 76	8.16	$29.70
C30024	2.4	254x 76	10.09	P.O.A

Z Purlins

Minimum order $200

Code	Thickness	Size (mm)	Weight (kg/mtr)	Cost (p/mtr) INC GST
Z10012	1.2	102 x 53 x 49	2.10	$8.25
Z10015	1.5	102 x 53 x 49	2.62	$9.79
Z10019	1.9	102 x 53 x 49	3.29	$12.10
Z15012	1.2	152 x 65 x 61	2.89	$11.33
Z15015	1.5	152 x 65 x 61	3.59	$13.42
Z15019	1.9	152 x 65 x 61	4.52	$16.50
Z15024	2.4	152 x 65 x 61	5.70	$20.57
Z20015	1.5	203 x 79 x 74	4.49	$16.72
Z20019	1.9	203 x 79 x 74	5.74	$20.90
Z20024	2.4	203 x 79 x 74	7.24	$26.07
Z25019	1.9	254 x 79 x 74	6.5	$23.76
Z25024	2.4	254 x 79 x 74	8.16	$29.70
Z30024	2.4	300 x 100 x 93	10.09	P.O.A

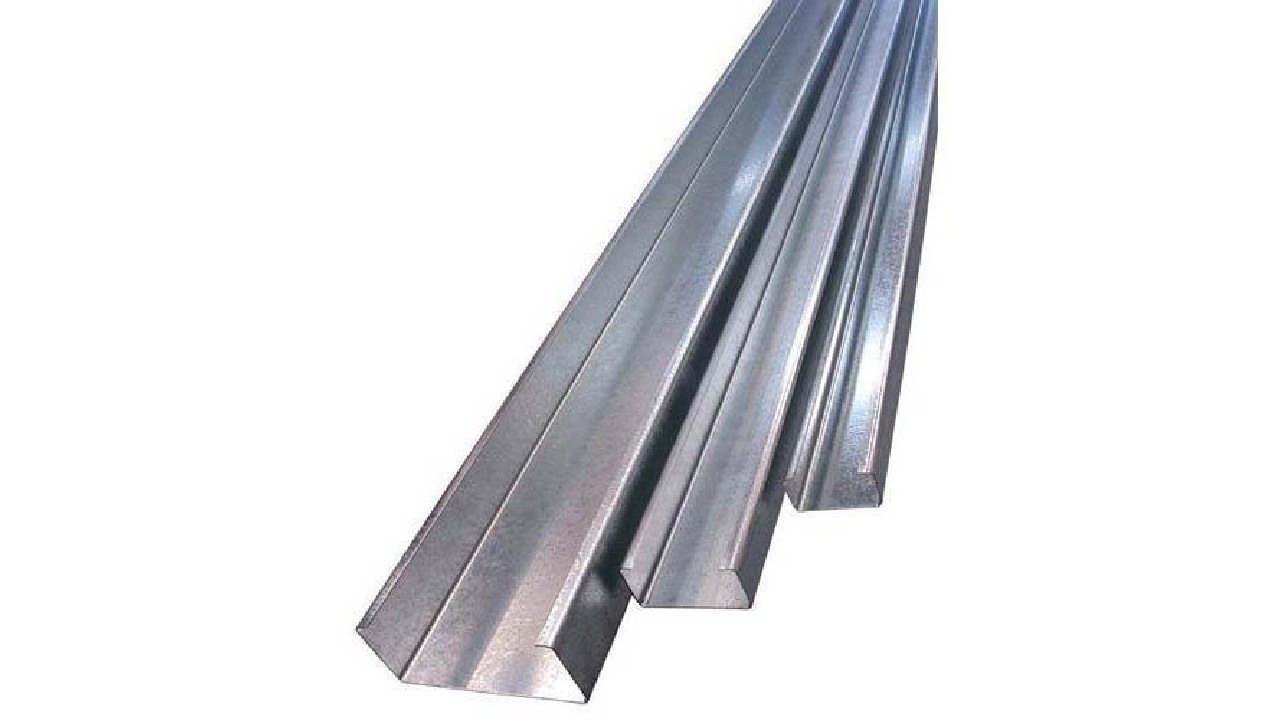

C Purlin

C purlins are a type of structural component commonly used in construction, especially in roofing and wall framing applications. They are typically made from cold-formed steel and are shaped like a “C” when viewed from the side.

Material: Usually made from galvanized steel to prevent corrosion.
Shape: The cross-section is a “C” shape, with flanges on either side and a web in the middle.
Sizes: Available in various sizes and thicknesses to meet different structural requirements.

C Purlins

READY TO GO STOCK SIZES

Size (mm)	Length	Cost INC. GST
100 x 1.5	6.1 Mtr	$58.85
150 x 1.9	8.0 Mtr	$130.90
200 x 1.9	8.0 Mtr	$167.20

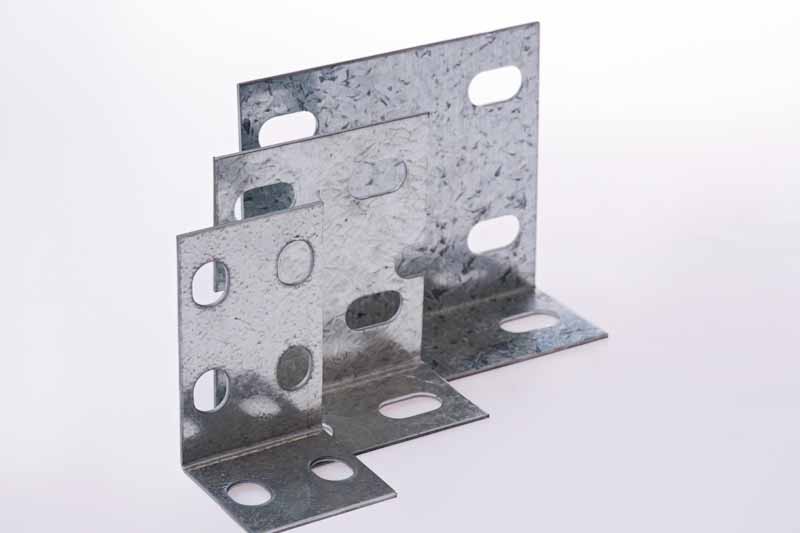

GP Bracket

A GP bracket, also known as a General Purpose bracket, is a type of structural bracket used in construction and engineering applications. It’s designed to support various structural elements and is often used in conjunction with purlins and other framing components.

Material: Typically made from steel or other durable metals, sometimes galvanized for corrosion resistance.
Design: The design can vary, but GP brackets generally have a flat base with holes for bolts or screws and a projecting arm or flange that extends out to provide support.
Size and Load Capacity: Available in various sizes and load capacities to suit different applications.
