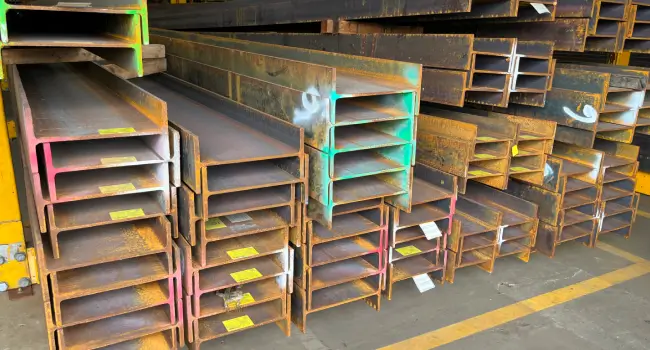

Universal Beams available in Brisbane northside.
Pick up or delivery available anytime.
Universal Beams (UB) Brisbane |
|||||
| Code | Kg/mtr | Depth (mm) | Width (mm) | Flange Thickness | Web Thickness |
|---|---|---|---|---|---|
| UB15014 | 14 | 150 | 75 | 7 | 5 |
| UB15018 | 18 | 155 | 75 | 9.5 | 6 |
| UB18016 | 16.1 | 173 | 90 | 7 | 4.5 |
| UB18018 | 18.1 | 175 | 90 | 8 | 5 |
| UB18022 | 22.2 | 179 | 90 | 10 | 6 |
| UB20018 | 18.2 | 198 | 99 | 7 | 4.5 |
| UB20022 | 22.2 | 202 | 133 | 7 | 5 |
| UB20025 | 25.4 | 203 | 133 | 7.8 | 5.8 |
| UB20029 | 29.8 | 207 | 134 | 9.6 | 6.3 |
| UB25025 | 25.7 | 248 | 124 | 8 | 5 |
| UB25031 | 31.4 | 252 | 146 | 8.6 | 6.1 |
| UB25037 | 37.3 | 256 | 146 | 10.9 | 6.4 |
| UB31032 | 32 | 298 | 149 | 8 | 5.5 |
| UB31040 | 40.4 | 304 | 165 | 10.2 | 6.1 |
| UB31046 | 46.2 | 307 | 166 | 11.8 | 6.7 |
| UB36044 | 44.7 | 352 | 171 | 9.7 | 6.9 |
| UB36050 | 50.7 | 356 | 171 | 11.5 | 7.3 |
| UB36056 | 56.7 | 359 | 172 | 13 | 8 |
| UB41053 | 53.7 | 403 | 178 | 10.9 | 7.6 |
| UB41059 | 59.7 | 406 | 178 | 12.8 | 7.8 |
| UB46067 | 67.1 | 454 | 190 | 12.7 | 8.5 |
| UB46074 | 74.6 | 457 | 190 | 14.5 | 9.1/th> |
| UB46082 | 82.1 | 460 | 191 | 16 | 9.9 |
| UB53082 | 82 | 528 | 209 | 13.2 | 9.6 |
| UB53092 | 92.4 | 533 | 209 | 15.6 | 10.2 |
| UB610101 | 101 | 602 | 228 | 14.8 | 10.6 |
| UB610113 | 113 | 607 | 228 | 17.3 | 11.2 |
| UB610125 | 125 | 612 | 229 | 19.6 | 11.9 |
